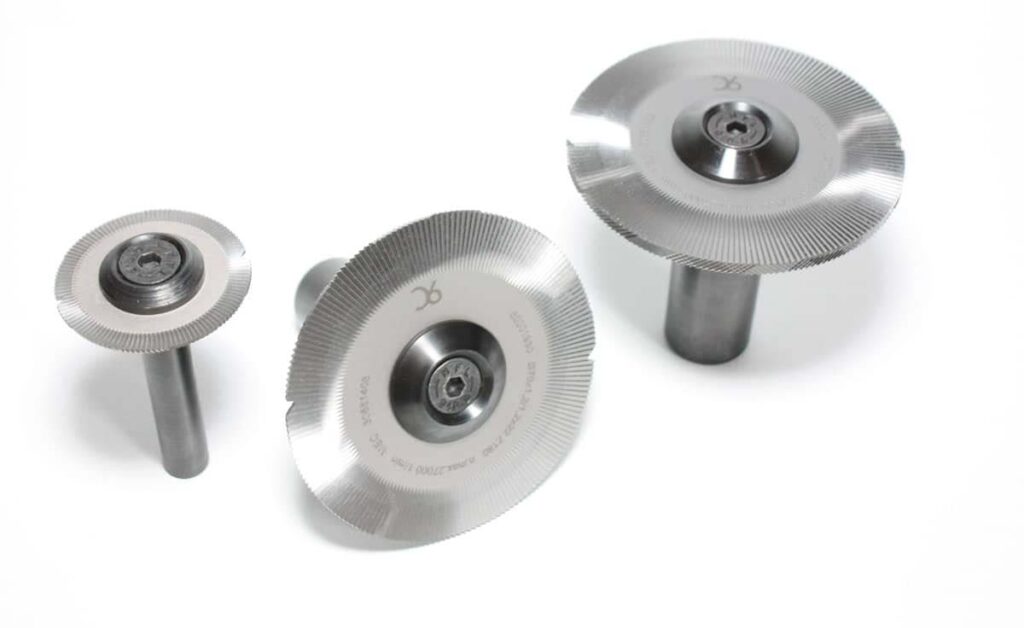

STRAIGHT & CURVE
Application
For processing materials with high and low fibre content:
- RTM
- Prepreg
- Thermosets
- Copper mesh
- Elastic overlays
- Honeycomb
- SMC
TOOL DESIGN
- New tooth design enables highest feed rates with best cut quality
- Narrow cutting widths reduce dust emissions
- Saws with cutting widths from 2.5 mm can be used for 5-axis machining. Thus curves can be sawed
| Part No. | Ø | Cutting Width | Max. Material Thickness | Mounting Ø | Version |
|---|---|---|---|---|---|
| 60002250 | 40 | 1,2 + 0,2 | 5 | 10 | straight |
| 60001930 | 70 | 1,2 + 0,2 | 10 | 16 | straight |
| 60003163 | 70 | 2 + 0,2 | 15 | 16 | straight & curve |
| 60003467 | 90 | 2 + 0,2 | 20 | 22 | straight & curve |
See How Straight & Curve Works
Cutting Straight Path in CFRP
CFRP at 10 meters/minute
CFRP at 15 meters/minute
CFRP at 20 meters/minute
Can your saw do this?
Straight & Curve cutting long piece of CFRP
Straight & Curve cutting radiused path in CFRP
Cutting straight and radiused path in CFRP
Cutting straight path in CFRP
Cutting radiused and straight path in long CFRP workpiece
Cutting radiused path in long CFRP workpiece
Resulting surface finish of a CFRP stack
Cutting radiused path in CFRP
Cutting Sample 1
Cutting Sample 2
Cutting Sample 3
Cutting Sample 4
Cutting Sample 5
Cutting Sample 6
